REPOWERTEK

For Lead-acid batteries > Regenerator > For 6V.8V.12V

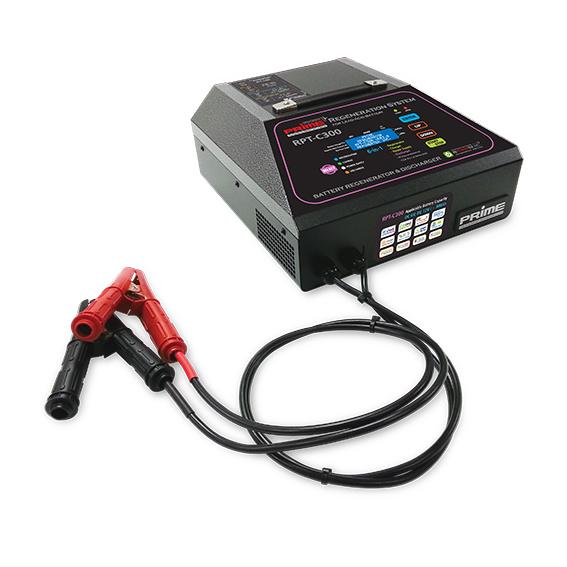

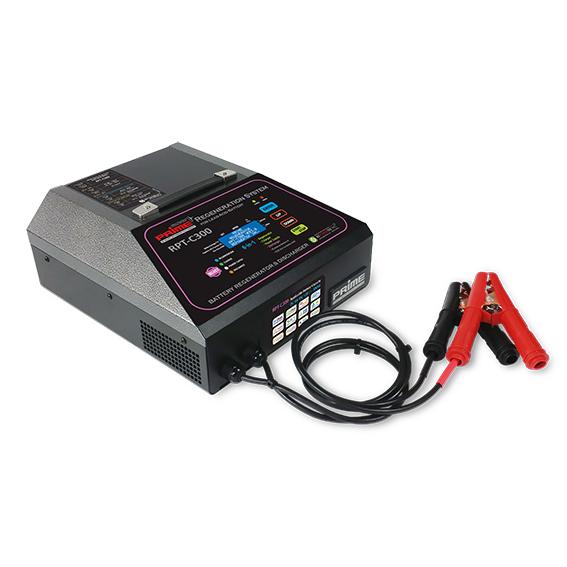

RPT-C300

For all types of Lead-Acid Batteries

4-in-1 Multifunctional Workstation

· High-Frequency Regenerator
· Smart Charger
· DC Power Supply
· Precision Discharger

Key Points

4-in-1 Complete Battery Maintenance System: Regeneration, Charging, Discharging, and Power-Supply Regeneration into a single compact unit.

All-In-One Cost Saver: Built-in max 30A discharger replaces the need for multiple standalone units, dramatically cutting equipment expenses.

Configuration: Shares identical regeneration, charging, and 420W discharging performance with the RPT-T300, without the Condition Test Mode. (A Workstations with Built-in Discharger)

Expert choice for dedicated regeneration and capacity discharge cycles.

Contact
List

Performance & Technology

Broad Battery Compatibility: Designed specifically for 6V / 8V / 12V lead-acid batteries.

Heavy-Duty Capacity Handling: Capable of back-to-back regeneration (2+ consecutive cycles) for high-capacity batteries exceeding 300Ah.

High Output Current: Delivers up to 25A max for Regeneration, Charging, and Power Supply Regeneration across 6V, 8V, and 12V modes.

High-Rate Discharger: Supports discharge rates up to 30A max for accurate capacity testing.

Upgraded Functional Suite: Inherits all core functions and features of the proven RPT-C300, enhanced with an exclusive Condition Test Mode.

Technical Specifications

DC Output Voltage: DC 6V, 8V,12V (adjustable)

Output Current: Max. 25A (precise micro-control tailored to battery type)

Battery Capacity Range: 40Ah ~ 300Ah

AC Input Power: AC 80V ~ 250V / 50Hz ~ 60Hz

Power Consumption: 0.5kWh

Built-in Discharger: Digital constant-current discharger (DC 12V, Max. 30A, 420W)

Safety & Smart Control

Thermal Protection: Prevents temperature spikes through active output voltage/current regulation.

Over-Voltage & Line Protection: Input over-voltage protection and voltage variation stabilization to prevent potential thermal hazards.

Interface: Smart MICOM control system paired

Portability: Portable design optimized for field maintenance and worldwide operating conditions.

Dimensions (WxDxH): 345 × 420 × 180mm (13.6 × 16.5 × 7.1 in)

Weight : Approx. 10.5 kg (23.1 lbs) (Body and Cable)

Cable Included: 25 mm² (25SQ) Battery Cable (2.0 m / 6.6 ft)
